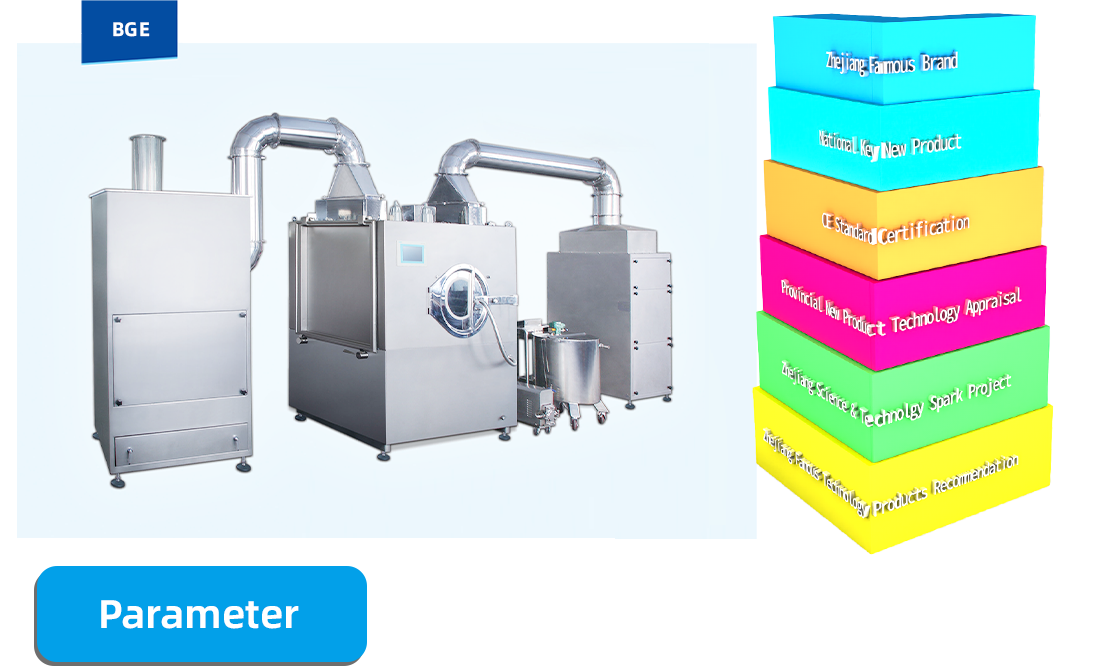

BG80E High Efficiency Intelligent Coating Machine
| Load Capacity | 80L |
| Rotation Speed of Coating Pan (R/M) | 1-19RPM |
| Power of Main Machine | 1.5Kw |
| Diameter of Coating Pan | ¢930mm |
| Motor of Air Exhaust Cabinet | 3Kw |
| Air Exhaust Flow | 5268m3/h |
| Motor Power of Hot Air Cabinet | 1.1Kw |
| Hot Air Motor Air Flow | 1685m3/h |
| Weight of Main Machine | 684Kg |
| Clean Air Pressure | ≥0.4Mpa |
| Clean Air Consumption | 0.4m3/min |
| Dimension of Main Machine | 1210X1000X1900mm3 |
| Dimension of Hot Air Cabinet | 900X800X2050mm3 |
| Dimension of Air Exhaust Cabinet | 900X820X2130mm3 |
| Steam Heating Power | 10 |
| Electric Heating Power | 30Kw |
