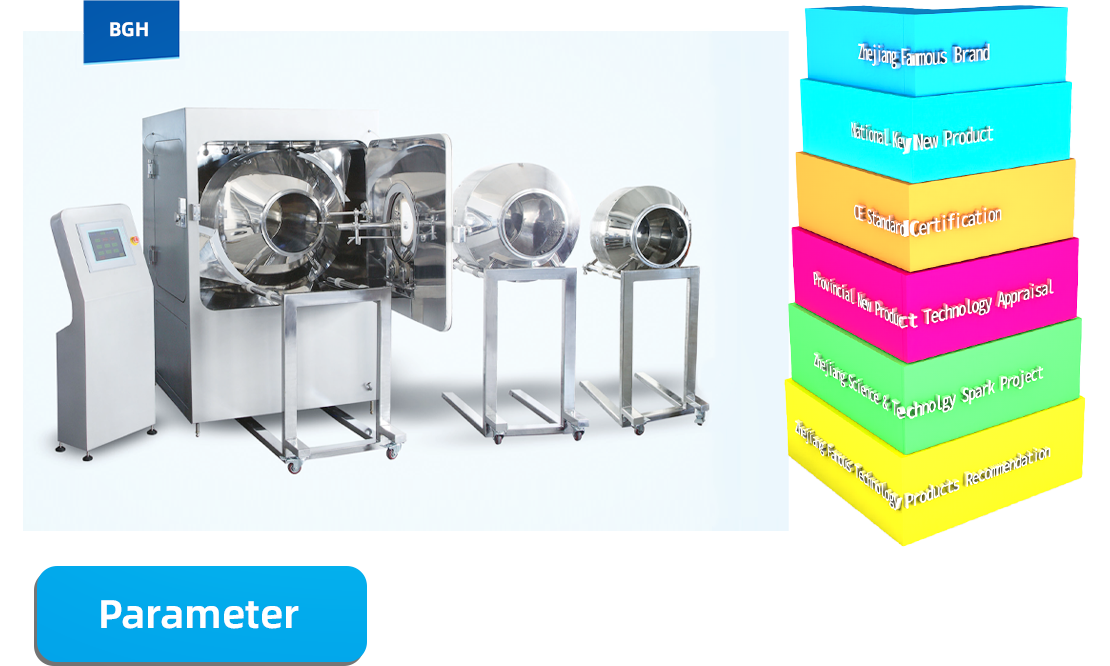

BG5H High Efficiency Intelligent Coating Machine
| Load Capacity | 5L |
| Rotation Speed of Coating Pan (R/M) | 1-30RPM |
| Power of Main Machine | 0.37Kw |
| Diameter of Coating Pan | ¢480mm |
| Motor of Air Exhaust Cabinet | 1.1Kw |
| Air Exhaust Flow | 2500m3/h |
| Motor Power of Hot Air Cabinet | 0.25Kw |
| Hot Air Motor Air Flow | 504m3/h |
| Weight of Main Machine | 750Kg |
| Clean Air Pressure | ≥-Mpa |
| Clean Air Consumption | -m3/min |
| Dimension of Main Machine | 1300X900X1600mm3 |
| Dimension of Hot Air Cabinet | 1300X900X1600mm3 |
| Dimension of Air Exhaust Cabinet | 1300X900X1600mm3 |
| Steam Heating Power | - |
| Electric Heating Power | 10Kw |
