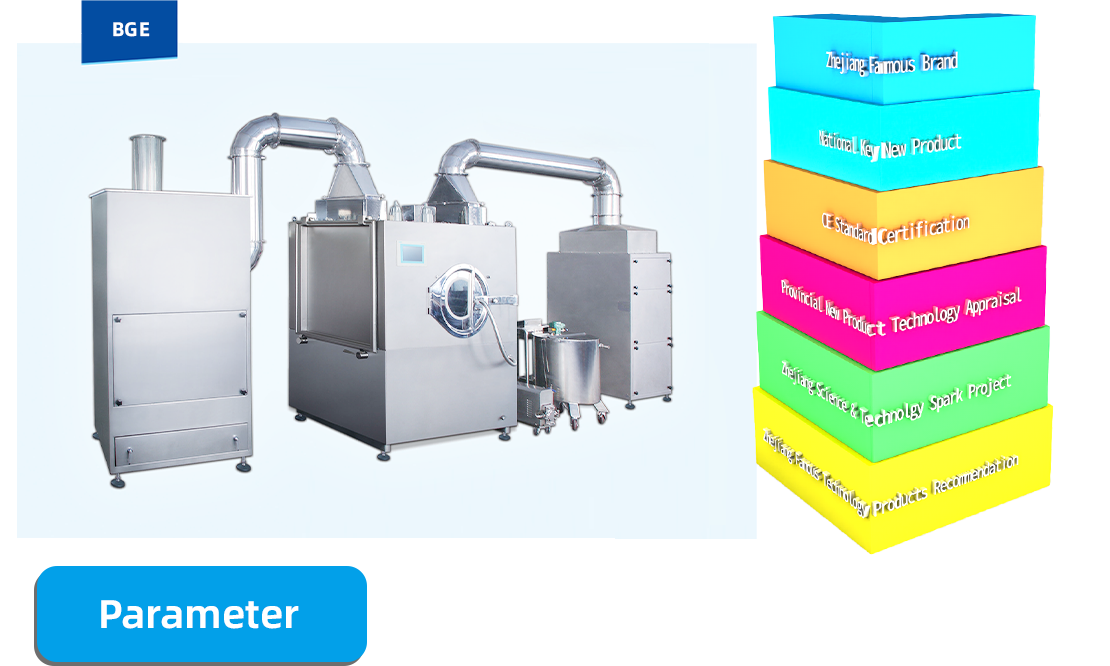

BG1000E High Efficiency Intelligent Coating Machine
| Load Capacity | 1000L |
| Rotation Speed of Coating Pan (R/M) | 0-12RPM |
| Power of Main Machine | 7.5Kw |
| Diameter of Coating Pan | ¢1580mm |
| Motor of Air Exhaust Cabinet | 22Kw |
| Air Exhaust Flow | 20000m3/h |
| Motor Power of Hot Air Cabinet | 7.5Kw |
| Hot Air Motor Air Flow | 10000m3/h |
| Weight of Main Machine | 4000Kg |
| Clean Air Pressure | ≥0.4Mpa |
| Clean Air Consumption | 3.5m3/min |
| Dimension of Main Machine | 2500X3100X2800mm3 |
| Dimension of Hot Air Cabinet | 1700X1200X2600mm3 |
| Dimension of Air Exhaust Cabinet | 3000X1115X2400mm3 |
| Steam Heating Power | 40 |
| Electric Heating Power | 120Kw |
