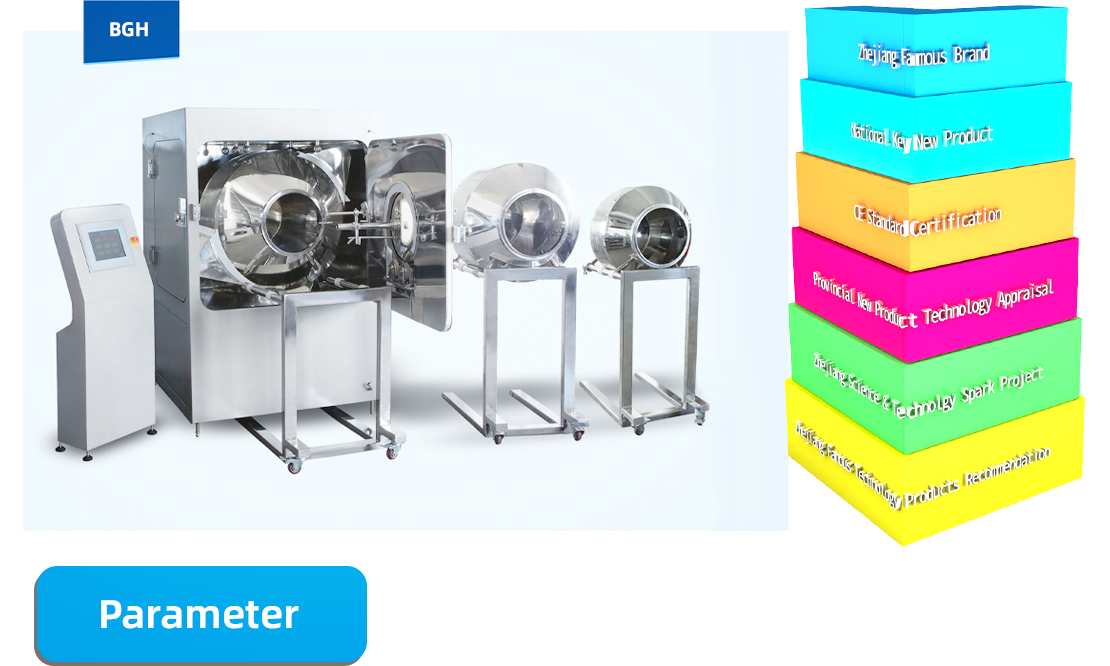

BG20H High Efficiency Intelligent Coating Machine
| Load Capacity | 20L |
| Rotation Speed of Coating Pan (R/M) | 1-25RPM |
| Power of Main Machine | 0.75Kw |
| Diameter of Coating Pan | ¢680mm |
| Motor of Air Exhaust Cabinet | 2.2Kw |
| Air Exhaust Flow | 3517m3/h |
| Motor Power of Hot Air Cabinet | 0.75Kw |
| Hot Air Motor Air Flow | 1200m3/h |
| Weight of Main Machine | 625Kg |
| Clean Air Pressure | ≥-Mpa |
| Clean Air Consumption | -m3/min |
| Dimension of Main Machine | 1050X960X1800mm3 |
| Dimension of Hot Air Cabinet | 1050X960X1800mm3 |
| Dimension of Air Exhaust Cabinet | 650X600X1860mm3 |
| Steam Heating Power | - |
| Electric Heating Power | 14Kw |
